Master Typology

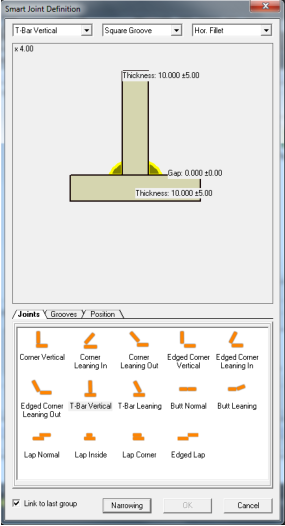

/Smart Joint
1.
Copy and Paste the Smart Joint Definition
master rule, and rename it . Or, drag the
Smart Joint Definition icon to the Process
working area below.
2.
Double click on the new created Smart
Joint Definition icon.
3.
Select the Joint type, Groove type and
Weld position type either by the drop
down menus at the top or click the
Expending button and select one icon
from each Joints, Grooves and potions
tabs.
4.
Double click on the properties display
and scroll the mouse
wheel to change the properties value.
5.
Click the OK button.
and scroll the mouse
wheel to change the properties value.
5.
Click the OK button.
Create new Smart Joint Definition
rule (Path filter) -
/Smart Path
1.
Copy and Paste the Smart Path Definition
master rule, and rename it . Or, drag the
Smart Path Definition icon to the Process
working area below.
2.
Double click on the new created Smart Path
Definition Definition icon.
3.
Select the filter properties.
4.
Click the OK button.
Create new Smart Path Definition
rule (filter) -

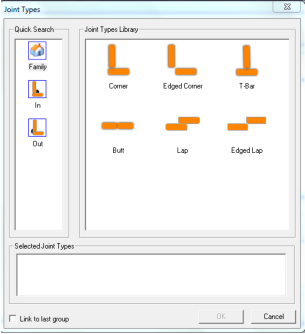

/Joint Type
1.
Copy and Paste the joint Types master rule,
and rename it . Or, drag the Joint Types icon to
the Process working area below.
2.
Double click on the new created Joint Types
icon.
3.
Drag Joint type icons to the Selected Joint
Types working area below. You can drag more
than one type of joints to create an array of
filters.
4.
Click the OK button.
Create new Joint Types rule (old
filter) -

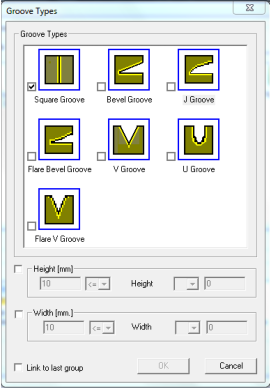

/Groove Type
1.
Copy and Paste the Groove Types master rule,
and rename it . Or, drag the Groove Types icon
to the Process working area below.
2.
Double click on the new created Groove Types
icon.
3.
Select the Groove Type icon and the set the
parameters.
4.
Click the OK button.
Create new Groove Types rule (old
filter) -

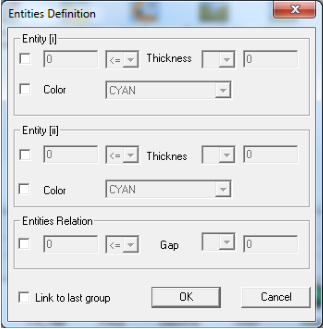

/Entities Definition
1.
Copy and Paste the Entities definition
master rule, and rename it . Or, drag the
Entities Definition icon to the Process
working area below.
2.
Double click the new created Entities
Definition icon.
3.
Set the filters parameters.
4.
Click the OK button.
Create new Entities Definition
rule (filter) -

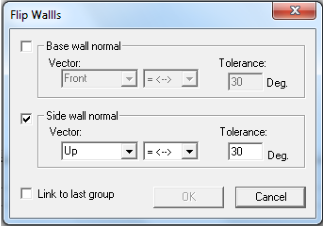

/Flip Walls
1.
Copy and Paste the Flip Walls master
rule, and rename it . Or, drag the Flip
Walls icon to the Process working area
below.
2.
Double click the new created Flip walls
icon.
3.
Set the action parameters.
4.
Click the OK button.
Create new Flip Walls rule (old
action) -

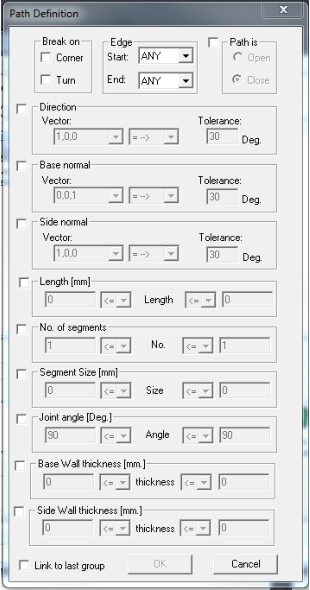

/Path Definition
1.
Copy and Paste the Path Definition
master rule, and rename it . Or, drag the
Path Definition icon to the Process
working area below.
2.
Double click the new created Path
Definition icon.
3.
Set the action parameters.
4.
Click the OK button.
Create new Path Definition rule
(old action) -

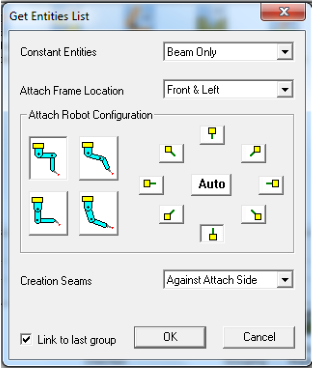

/Entities List
1.
Copy and Paste the Get Entities List master
rule, and rename it . Or, drag the Get
Entities List icon to the Process working
area below.
2.
Double click the new created Get Entities
List icon.
3.
Click one or more robot configuration
buttons and select from the drop down
menus the setup.
4.
Click the OK button.
Create new Get Entities List rule
(filter) -
